Installation Safety Of HVLS Fans Gearbox Ceiling Fan For Warehouse Ventilation
Product Description:
1.HVLS FAN is a high-volume ,low speed ceiling fan greater than traditional industrial fan .
2.Using large diameter baldes to moves a lots of air from all directions to the ground .Forming a air layer from the ground ,then move horizontal to all around ,facilitating the air circulation of the whole space.The large coverage area ,low spped ,low energy ,strong wind , increased air circulation replaces hot ,humid air ,create a convective,nature,comfortable wind . .
Features:
- High Volume, Low Speed
- Patented Double Outer Bearing Safety System
- Up to 16 safety protection devices for anti-falling
- Energy-saving for large scale premises
Technical Parameters:
| DIAMETER | 12ft(3.8m) | 16ft(5.0m) | 20ft(6.2m) | 24ft(7.3m) |
| MODEL | BFFCA38 | BFFCA50 | BFFCA62 | BFFCA73 |
| AIR VOLUME | 11050m³/min | 12050m³/min | 13100m³/min | 14060m³/min |
| MAXIMUM SPEED | 95RPM | 75RPM | 60RPM | 55RPM |
| WEIGHT | 68Kg | 90Kg | 110Kg | 125Kg |
| MOTOR POWER | 1.5kw | 1.5kw | 1.5kw | 1.5kw |
| FULL LOAD CURRENT | 2.4Amps/380v 4.2Amps/220v | 2.4Amps/380v 4.2Amps/220v | 3.5Amps/380v 6.1Amps/220v | 3.5Amps/380v 6.1Amps/220v |
Applications:

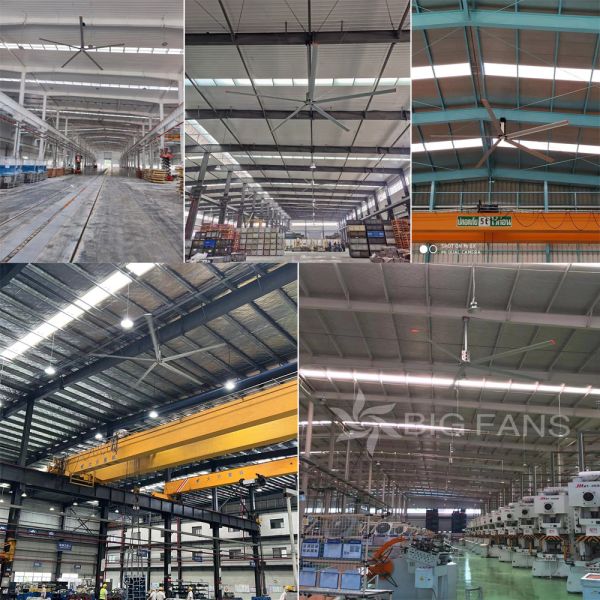

✔ Large warehouse, cold chain center: prevent goods from mildew, improve the working environment of employees
✔ Automotive, electronics, textile workshop: disperse welding smoke, dust, improve air quality
✔ Stadiums, airports, shopping malls: Solve the problem of hot and stuffy, reduce reliance on air conditioning
✔ Greenhouse, farm: adjust temperature and humidity, promote air circulation, reduce poultry heat stress
Basic Configuration (Model BFFCA73 GEARBOX SERIES) :
Support and Services:
The Product Technical Support and Services for the PMSM Series HVLS Industrial Fans include:
- Maintenance recommendations to keep the fan running efficiently and prolong its lifespan.
- Warranty support to address any defects or malfunctions covered under the product warranty.
Packing and Shipping:
Each fan is securely wrapped and placed in a sturdy wooden box with ample cushioning material to prevent any damage during transit, and a set of big fans is composed of a square box and a long box.
FAQ:
Q: Are you factory or trading company?
A: We are factory which established more than 12 years.
Q: Do you accept OEM?
A: Yes, but we have MOQ requirement
Q: What is your delivery time? A: Usually we have stock, delivery time within 7 working days. If there is customized requirement, time is negotiable. Q: What other services can you provide? A: Accepted delivery terms: FOB,CFR,CIF,EXW,DDP,DDU. Accepted payment type: T/T, L/C;
